Lab 0 : Environment Setup#

Goal of this lab#

Introduction#

Throughout AAML 2026, we will use the TinyRISC-V SoC Platform to explore hardware/software co-design for machine-learning acceleration. The platform integrates a RISC-V CPU, a customizable ML accelerator connected through custom instructions and AXI, and TensorFlow Lite for Microcontrollers (TFLM). In Lab 0, you will set up the required tools, program the reference SoC onto the FPGA, and run a reference TFLM application to verify the development environment for the following labs.

TinyRISC-V SoC Platform#

RISC-V CPU#

For a CPU to function, it must rely on the Instruction Set Architecture (ISA). An instruction set is a predefined list of commands that determines which operations the hardware can understand and execute. In this Lab, we use RISC-V, an open source ISA.

Our CPU supports RV32IM, with M-mode only supporting mcycle and mcycleh, and it also supports the fence.i instructions.

Moreover, the hardware supports CBO (Cache-Block Management Operations). We implement the zicbom extension, which allows software to manually manage cache coherence by cleaning or invalidating cache blocks. image

Extended ISAs#

ISA is divided into two levels: the Base ISA and the Extended ISAs.

  • Base ISA: For RV32I as an example. it only defines the basic integer instructions that a CPU must support, such as add, lw, sw, and beq.

  • Extended ISA: Depending on specific computational needs — such as floating-point arithmetic, vector and matrix processing, or even AI tensor operations — we can selectively incorporate these extensions into CPU designs.

The official specification reserves blank opcodes (such as custom-0), allowing developers like us to extend R-type formatted custom instructions.

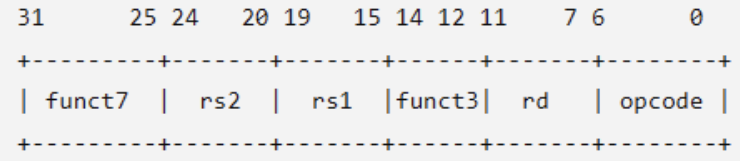

R-type

  • We referenced custom-0 and R-type

  • Custom-0 is an opcode retained by the official

  • NPU can be controlled by function3 and function7

Adding A Custom Instruction

  1. Choose a funct3/funct7 pair. cfu_op0..cfu_op7 select funct3=0..7

  2. Implement the hardware behavior in ../hw/srcs/NPU.v, or start from ../hw/templates/custom_accelerator_template.v

  3. Implement the software fallback in app/software_cfu.cc

  4. Add a functional or cycle-counting test in project/accelerator_tests.cc or another project source, then register it in the appropriate Lab submenu in project/proj_menu.cc

Build with USE_SOFTWARE_CFU=1 when you want to test the software fallback without issuing CUSTOM-0 instructions.
Use templates/custom_instruction_template.cc for a standalone performance test skeleton. After adding template-based code, run make validate; if the extension adds a new menu item, register its function in the appropriate Lab submenu in project/proj_menu.cc.

NPU (block)#

In this platform, NPU is the name of the customizable accelerator block connected to the RISC-V CPU. The CPU still runs the application and the TFLM interpreter and remains responsible for program control. Software explicitly invokes the NPU only for selected compute-intensive operations.

The CPU communicates with the NPU through a request-response interface based on a CUSTOM-0 instruction. funct3 and funct7 select the operation, while rs1 and rs2 provide two 32-bit operands. The CPU asserts NPU_start to begin an operation, which may take one or more cycles. When the operation finishes, the NPU places a 32-bit result on NPU_out and asserts NPU_done; the CPU then writes the result to rd and continues execution.

                      CUSTOM-0 request/result
+--------------------+ <=====================> +--------------------+
| RISC-V CPU         |                         | Customizable NPU   |
| Application + TFLM |                         | Compute / Control  |
+---------+----------+                         +----------+---------+
          | CPU cache / AXI                               | AXI4 master
          +-------------------+     +---------------------+
                              v     v
                         AXI Interconnect
                                |
                           Shared DDR3

AXI#

We provide a handy introduction to the basic concepts of AXI to help you with Lab 1 and Lab 2.
Make sure to use your NYCU account to have access to these slides.

TensorFlow Lite For Micro (TFLM)#

TfLM (Tensorflow Lite for Microcontrollers) is designed to run machine learning models on microcontrollers and other devices with only a few kilobytes of memory.

Based on TFLM architecture, the standard procedure for switching existing models and importing new models:

  • Select

    1. List bundled models

      make models
      make profiles
      make templates
      // Bare MODEL_FILE values are resolved under MODEL_DIR, which defaults to models.

    2. Bundled profiles:

      ad01          ad01_int8.tflite fixture input and golden output

    3. Build a specific model:

      make MODEL_FILE=ad01_int8.tflite

    4. Select a profile explicitly:

      make MODEL_FILE=my_model.tflite MODEL_PROFILE=generic_zero
      make MODEL_FILE=ad01_int8.tflite MODEL_PROFILE=ad01

  • Add

    1. Copy it into Platform/sw/models.

    2. Register any missing kernels in project/tflm_ops.cc.

    3. Start with templates/model_profile_template.cc if fixture data is not ready.

    4. Create models/<profile>_profile.cc when the model needs fixture input, generated input, custom tensor handling, or golden-output verification. Use templates/model_profile_template.cc as the starting pattern.

    5. Implement const ModelProfile* model_profile_get(void).

    6. For simple int8 models, fill input_data and expected_output.

    7. For custom tensor types, generated inputs, or multi-output checks, set the prepare_input or verify_output function pointers.

    8. Set TENSOR_ARENA_SIZE if the model needs a larger arena.

    9. Run make validate, then build with make MODEL_FILE=<name>.tflite.

Porting TinyRISC-V SoC to FPGA#

This section will guide you through the core three steps from installing the toolchain, cloning the platform, to running the platform.

Toolchain Setup#

Step 0: Get Your FPGA Board#

Arty A7-100T is used in this course, contact the TAs if you haven’t get one.

Step 1: Install Vivado#

  • Install Vivado We recommend you use version 2023.2 or version 2024.1

Note

For Windows users, please install all of your toolchains under WSL (Ubuntu) rather than on Windows to prevent any environment setup issues.

  • Add vivado to your PATH

  • Make sure vivado is installed correctly on your machine before you start by running:

$ vivado -version

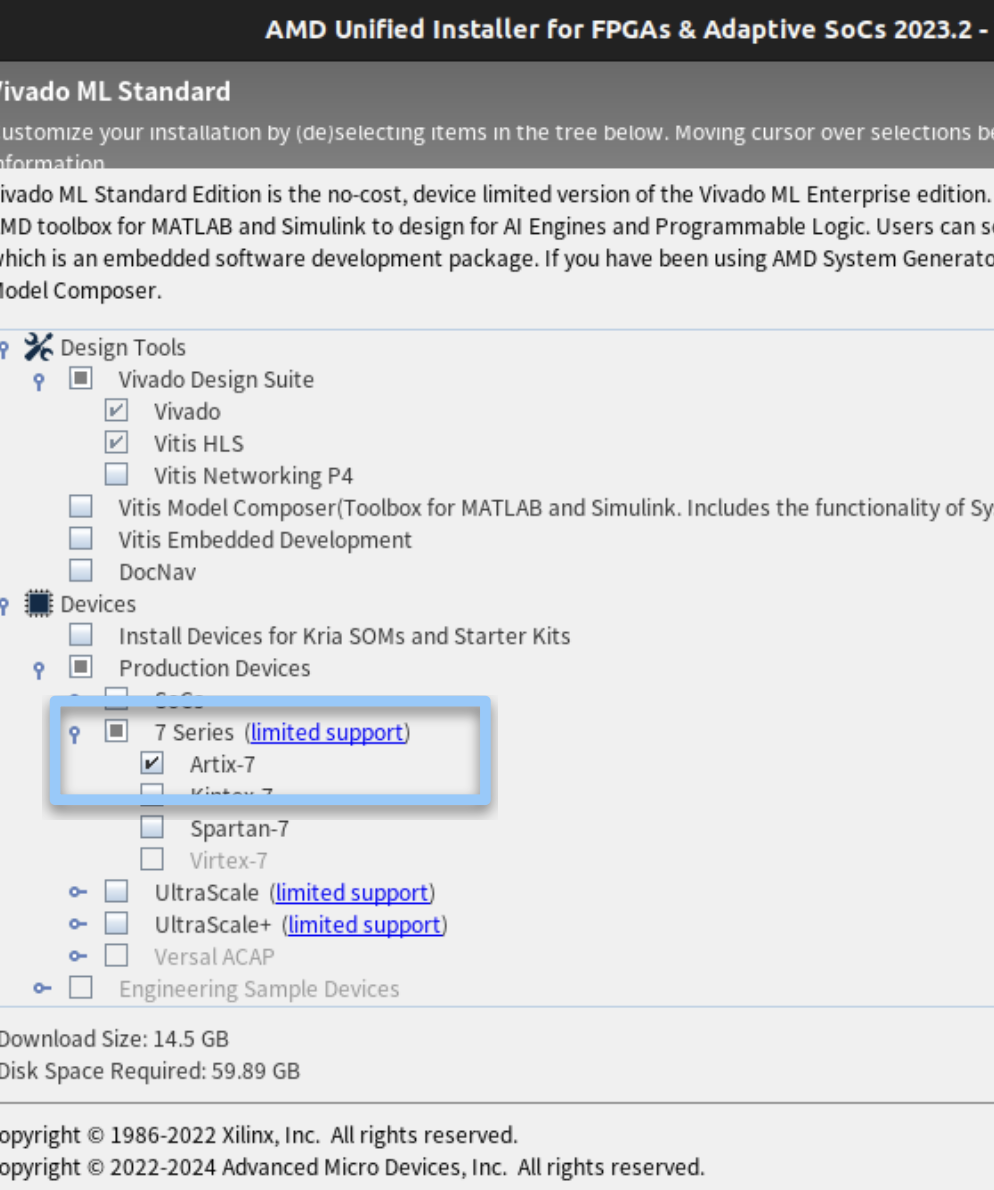

  • Since the full package of Vivado is pretty big, you may check only the Artix-7 option to save disk space and download time, and please note that the Vivado can take up to 8 hours to download, so plan to do that ahead of time! vivado_option

Step 2: Install RISC-V toolchain (Download linux-ubuntu)#

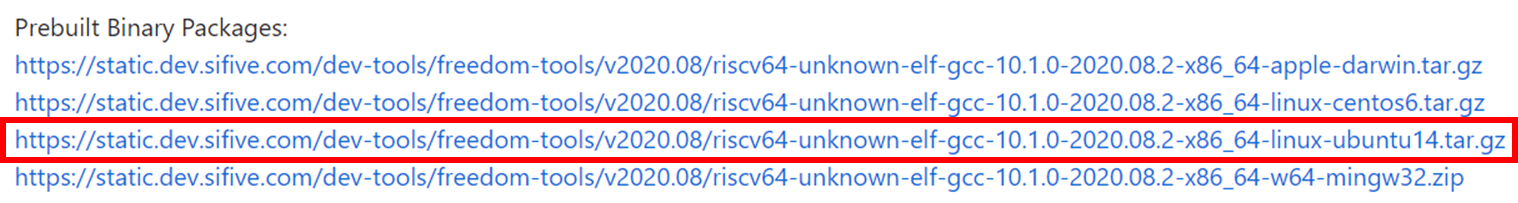

Open your terminal and execute the following commands to download and extract the toolchain: ToolChain

Download the August 2020 toolchain from freedom-tools and unpack the binaries to your home directory:

$ tar xvfz ~/Downloads/riscv64-unknown-elf-gcc-10.1.0-2020.08.2-x86_64-linux-ubuntu14.tar.gz

Add the toolchain to your PATH in your .bashrc or .zshrc:

export PATH=$HOME/riscv64-unknown-elf-gcc-10.1.0-2020.08.2-x86_64-linux-ubuntu14/bin:$PATH

Platform Setup#

Step 0: Initial Preparation#

Prepare a clean directory in your Linux environment and navigate into it.

Step 1: Clone the Repository#

cd {your folder}
git clone git@github.com:nycu-caslab/TinyRISC-V-SoC-Platform.git

Step 2: Set Permissions#

cd TinyRISC-V-SoC-Platform/Platform
chmod +x hw/run_hw.sh

Step 3: Run the Pre-flight check#

vivado -version
riscv64-unknown-elf-g++ --version
python3 -c "import serial"
make -C Platform/sw validate
make -C Platform/sw check-env

Running the Platform#

Step 1: Hardware Synthesis and FPGA Bitstream Programming#

  • Connect the FPGA board to your machine by the USB port

  • Run the following command to synthesize the hardware and program the bitstream into the FPGA board

make prog
  • Make sure this step is done correctly before moving to the next step

Step 2: Running the Software#

  • Run the following command to compile the software application and initiate interaction with the FPGA

make run MODEL_FILE=ad01_int8.tflite MODEL_PROFILE=ad01

Or

make run

if the project.mk file has been set.

  • When you see the line “Listening on /dev/ttyUSB1 for BIOS/App” on your terminal, press the CPU Reset button.

  • After that, you should see the menu on your terminal that you can play around with.

Detail Reference on How to Use the Platform#

See the documentation for the SoC hardware and software
